"Making the Cut" in Tokyo

Architectural Constraints and the Tokyo Stairwell Canvas

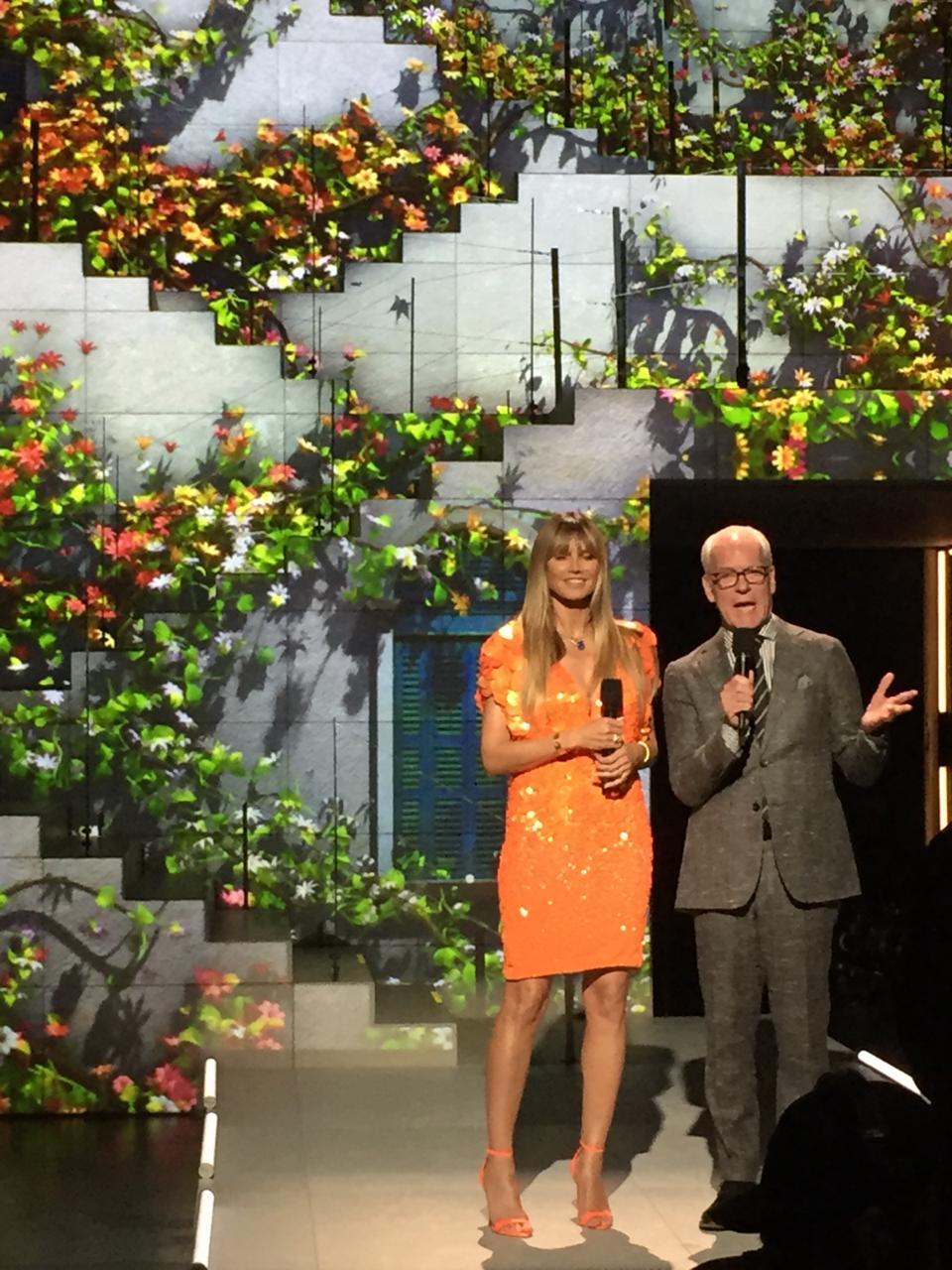

The choice of the Amazon Fashion Studio in Tokyo provided a unique architectural challenge. Unlike a flat studio floor, the stairwell utilized for the fashion showcase introduced complex geometric planes, varying depths, and acute angles that required precise mathematical alignment. In projection mapping, the physical structure dictates the content; the stairwell sides served as a canvas where six different thematic digital environments were created.

The technical analysis of the space began with an assessment of the surface materials. The reflectivity of the stairs, the ambient light spill from the studio windows, and the physical footprint available for projector placement all influenced the hardware selection. Because the models would be walking down the stairs, the projection had to be mapped in a way that minimized shadow interference, requiring high-angle placement and specialized optics.

The 14-Day Technical Residency: A Chronological Framework

The execution of a project of this scale requires a compressed and highly disciplined timeline. A two-week residency is the industry standard for integrating complex visual systems into a television production. This period is divided between the physical "hard-tech" setup and the "soft-tech" creative refinement.

Phase I: Infrastructure and Rigging (Days 1–4)

The first four days focused on the structural requirements of the project. The Technical Director(me) oversaw the installation of heavy-duty trussing systems capable of supporting large-format projectors. In a studio environment, safety and precision are paramount; every projector must be secured with safety cables and integrated into a power distribution network that includes redundancy for the 4K broadcast.

The laying of signal paths—primarily fiber-optic cables—was necessary to ensure low-latency data transfer from the media servers to the projectors. Because the Amazon Fashion Studio is a working industrial space, the cable management had to be meticulously routed to avoid interference with the cameras and the models' walking paths.

Phase II: Geometric Calibration and Warping (Days 5–8)

Once the hardware was in place, the focus shifted to the software environment. Using professional mapping tools in Touchdesigner, the technical team performed "vertex warping" to match the digital output to the 3D geometry of the stairs. This involved dragging individual pixels to align with the edges of the steps, the handrails, and the vertical wall surfaces.

A critical component of this phase was "edge blending." To cover the entire stairwell, multiple projectors were used, and their overlapping regions had to be seamlessly merged to create a single, unified image. This requires precise control over the "gamma" and "luminance" of the overlap zones to prevent visible seams that would be amplified by high-definition cameras.

Phase III: Content Integration and Creative Direction (Days 9–12)

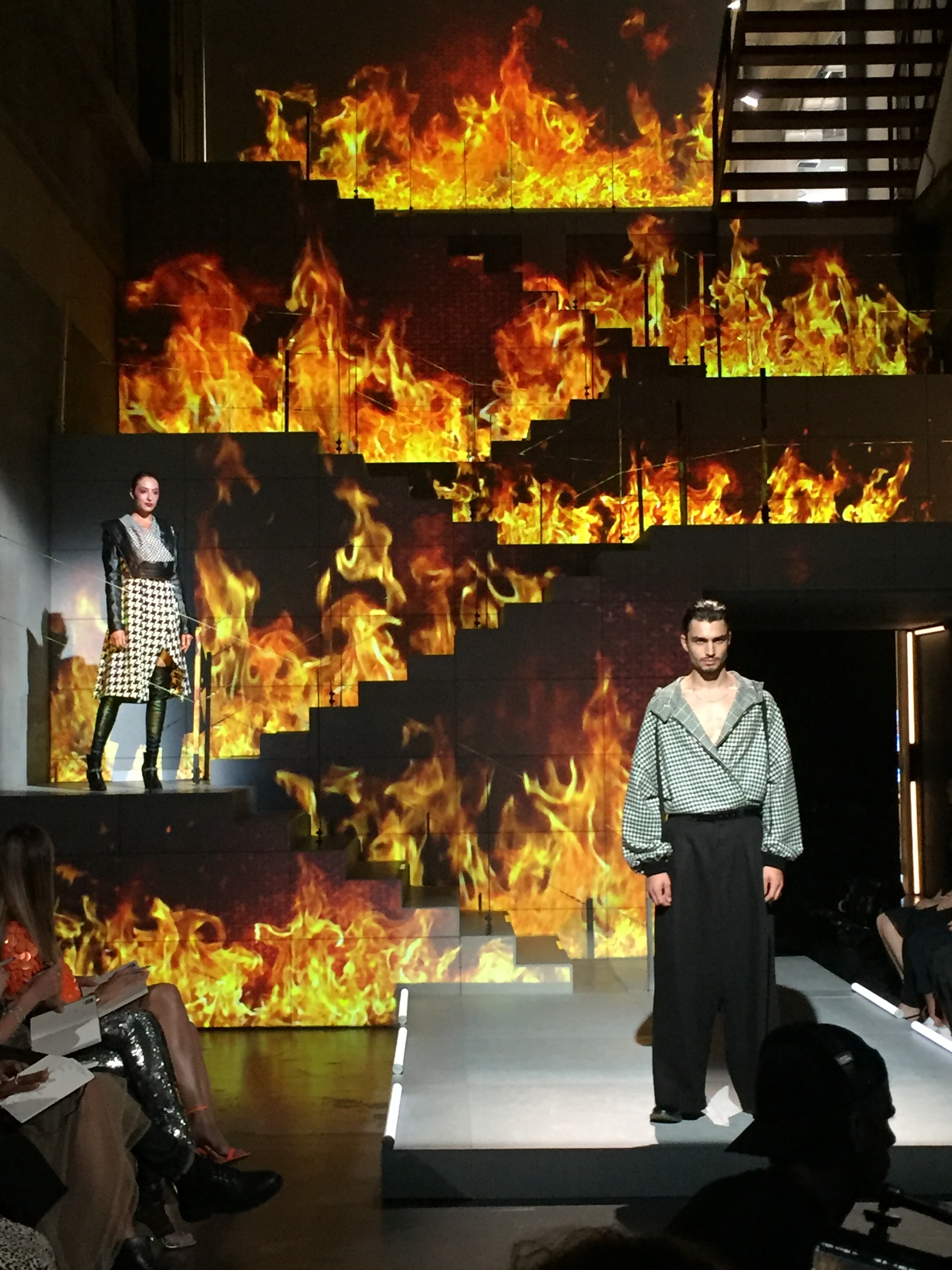

The third phase involved the transition from engineering to art direction. The Technical Director acted as the bridge between the clients— Amazon Fashion Studio and Nuformer —and the motion design teams . The motion designers had created six distinct thematic environments, ranging from futuristic neon cityscapes to organic, ethereal textures, each intended to reflect a specific designer's vision.

Directing motion designers in a projection mapping context differs significantly from directing for standard screens. The Technical Director mandated the use of high-contrast visuals, as "projection thrives in bold, contrast-heavy visuals". Designers were instructed to use bright motion on dark backgrounds to ensure the digital art appeared to float within the stairwell, creating a three-dimensional effect rather than looking like a flat video.

Phase IV: Rehearsals and Talent Integration (Days 13–14)

The final 48 hours were dedicated to "teching" the show with the talent. Models walked the stairs under full show conditions, allowing the Technical Director to adjust the timing of the animations to match the pace of the runway walks. This required the media servers to be synchronized with the show's master timecode, ensuring that as a model reached a specific landing, the digital environment reacted or transitioned in real-time.

Conclusion: Setting a New Industry Benchmark

The two-week engagement for "Making the Cut" in Tokyo represents a pinnacle of technical and creative direction in the field of immersive fashion media. By successfully navigating the complexities of architectural mapping, hardware engineering, and designer direction, Atmosphere FX demonstrated the transformative power of 3D projection mapping in a global streaming context.
